4 Epigenomes Landscapes of CCOC models

4.1 Loading Data

CCOC_2D_3D_pooled <- read_csv("data/ChIP-seq/CCOC_2D_3D_pooled.csv",col_types = cols(condition = col_character()))
gr.list <- sapply(CCOC_2D_3D_pooled[["pooled_peak"]], read.narrowPeak )
names(gr.list) <- CCOC_2D_3D_pooled[["sample"]]

4.2 Descriptive Summary

4.2.1 Descriptive Summary of H3K27ac Peaks

peak.summary.list <- lapply(gr.list,get.genomeCoverage)
peak.summary.df <- data.frame(do.call(rbind,peak.summary.list))
peak.summary.df$widthsd <- lapply(peak.summary.df$width,sd)
#apply element-wise divsion of vector scores and vector widthpeak by row
peak.summary.df$singal.per.width <-apply(peak.summary.df[c("scores","widthPeak")], 1,function(x){unlist(x[1],use.names = FALSE)/unlist(x[2],use.names = FALSE)} )
peak.summary.df <- cbind(peak.summary.df, t(sapply(peak.summary.df$widthPeak,summary)))
peak.summary.df$target <- rownames(peak.summary.df) %>% str_replace(.,"[2-3]D[-,_]","")
peak.summary.df$condition <- CCOC_2D_3D_pooled$condition
peak.summary.df <- peak.summary.df %>% mutate_at(c("condition","numPeak"),unlist)
kable(peak.summary.df %>% dplyr::select(-c(scores,widthPeak,singal.per.width,target,condition)))%>% add_header_above(header = c(" " = 3, "Width Summary"= 7)) %>% kable_styling("striped")  %>%scroll_box(width = "100%")

			Width Summary
	numPeak	percentCoverage	widthsd	Min.	1st Qu.	Median	Mean	3rd Qu.	Max.
3D-HAC2	36315	1.014851	730.148	285	409	625.0	847.0485	1030.50	21877
3D-JHOC9	26182	0.5893284	633.499	200	315	493.0	682.2548	817.00	14561
3D_KOC-7	32459	2.432168	2191.885	415	949	1774.0	2271.1738	2785.00	44541
3D_OV207	50210	1.440366	991.7094	168	308	546.0	869.5099	1060.00	26496
3D_OVISE	36591	1.39044	1216.069	185	368	752.0	1151.7810	1551.50	25978
3D_SMOV2	37888	1.766143	1634.804	230	451	918.0	1412.9151	1783.00	41833
3D-C5X	27040	0.8671941	1017.543	212	379	662.0	972.0792	1219.00	31482
3D-HCH1	37424	1.379521	1359.268	188	371	683.0	1117.3010	1377.00	33858
2D_C5X	35938	1.54898	1546.566	190	404	846.0	1306.4231	1686.00	68650
2D_ES2	27788	1.512809	1464.576	318	716	1319.5	1650.1329	2042.00	26983
2D_HAC2	34440	1.5771	1548.123	190	424	944.0	1387.9955	1826.00	31942
2D_HCH1	45473	1.901269	1465.685	195	397	788.0	1267.3075	1652.00	41766
2D_JHOC5	34157	1.499355	1288.799	192	443	975.0	1330.5056	1783.00	24046
2D_JHOC9	42100	1.579591	1283.515	190	380	705.0	1137.2463	1455.25	44197
2D_KOC-7	28050	1.6566	1596.533	262	733	1499.0	1790.0980	2278.00	42949
2D_OV207	39529	2.008683	1636.637	218	507	1128.0	1540.2371	1963.00	30344
2D_OVAS	32562	1.546362	1405.513	228	498	1047.0	1439.4354	1891.00	36267
2D_OVISE	27756	1.251867	1267.911	240	530	1055.0	1367.0781	1774.00	27178
2D_OVMANA	37724	1.614853	1391.516	200	417	866.0	1297.5000	1723.25	31266
2D_OVSAYO	39968	1.798394	1412.501	218	456	935.0	1363.8432	1786.00	33122
2D_OVTOKO	45950	1.979838	1392.87	188	405	844.0	1305.9789	1742.00	28207
2D_RMGII	46439	2.180606	1649.837	192	434	899.0	1423.2669	1862.00	43923
2D_SMOV2	39757	1.984135	1680.421	230	483	982.0	1512.6890	1946.00	44701
2D_TOV21G	33000	1.805953	1976.66	242	531	1178.5	1658.7637	2096.00	91595

select_col <- c("target","widthPeak","singal.per.width","condition","Median","scores")
peak.volin.df <- peak.summary.df[select_col] %>% unnest(cols = c(widthPeak, singal.per.width, scores))

xlabs <- paste(unique(peak.volin.df$condition),"\n(N=",table(peak.summary.df$condition)%>% sort,")",sep="")

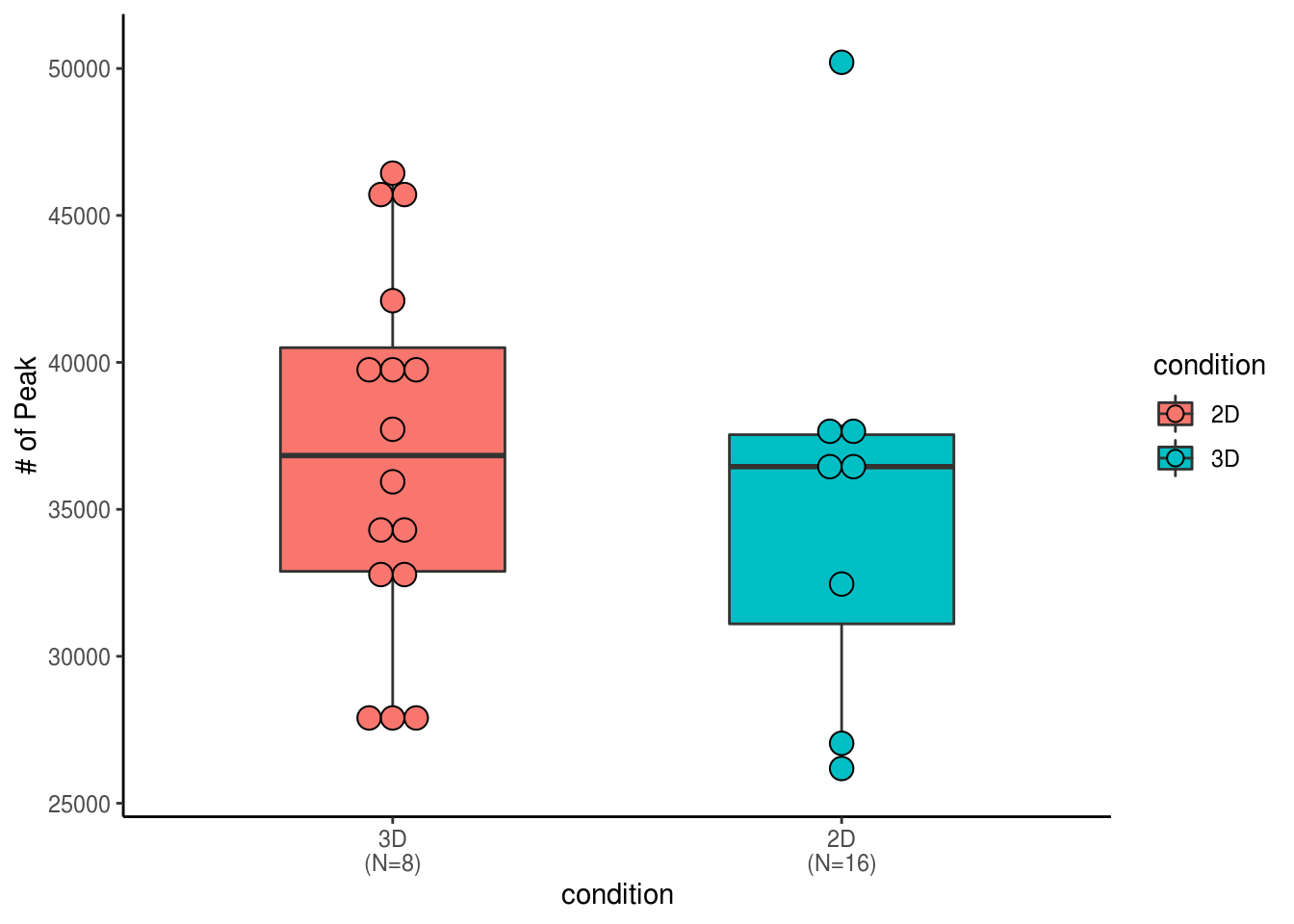

ggplot(peak.summary.df, aes(x=condition, y=numPeak, fill= condition))+ scale_x_discrete(labels=xlabs)+geom_boxplot(width=0.5,position = position_dodge(0.8))+ geom_dotplot(binaxis = "y", stackdir='center', dotsize = 1,position = position_dodge(0.8))+ labs(y="# of Peak") + theme_classic()

## Bin width defaults to 1/30 of the range of the data. Pick better value with `binwidth`.

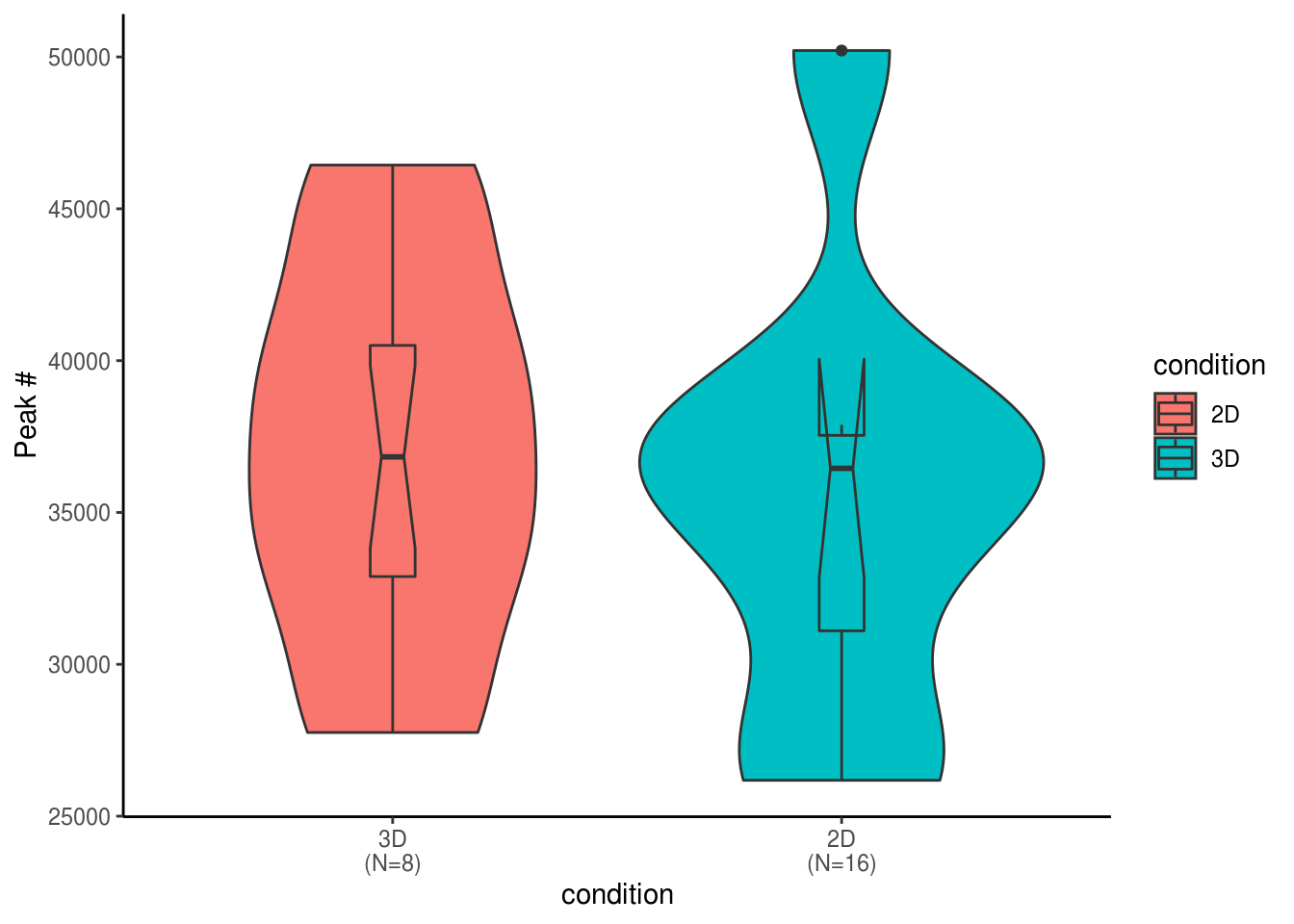

 ggplot(peak.summary.df, aes(x=condition, y=numPeak, fill= condition))+ scale_x_discrete(labels=xlabs) + geom_violin()+geom_boxplot(width=0.1,notch=TRUE)+ labs(y="Peak #") + theme_classic()

## notch went outside hinges. Try setting notch=FALSE.

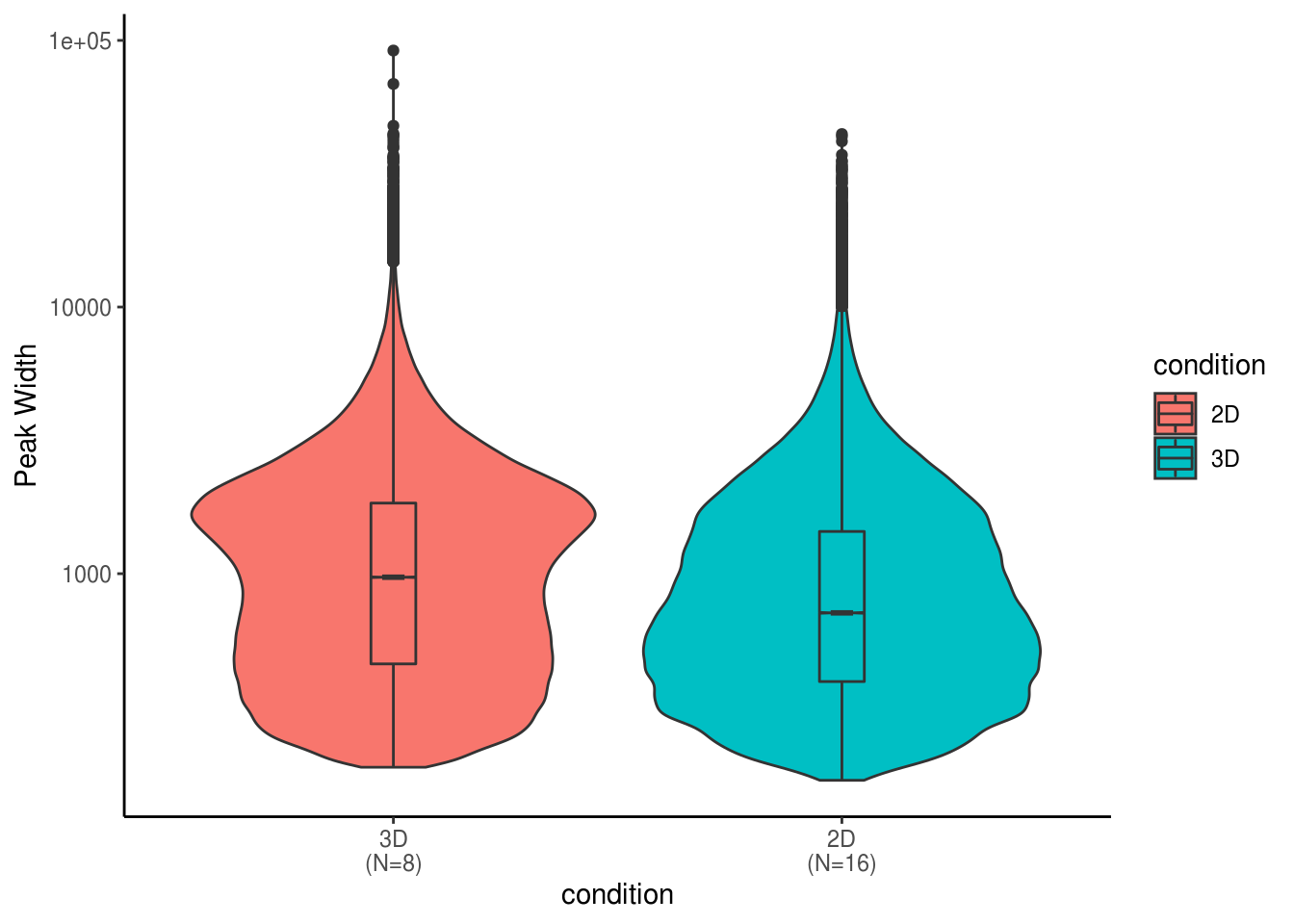

ggplot(peak.volin.df, aes(x=condition, y=widthPeak, fill= condition))+ geom_violin()+geom_boxplot(width=0.1,notch=TRUE)+ scale_x_discrete(labels=xlabs)+labs(y="Peak Width") + scale_y_log10(labels=as.character)+ theme_classic()

4.2.2 Descriptive Summary of Super Ehancer Peaks

  dir="data/ChIP-seq/rose2"
  AE.files <- list.files(path = dir, pattern = "*_AllEnhancers.table.txt",recursive = TRUE , full.names=TRUE )
  all.table <- cbind(dir=dirname(AE.files),all=AE.files)
  SE.gene.file <- list.files(path = dir, pattern = "*_SuperEnhancers_ENHANCER_TO_GENE.txt",recursive = TRUE, full.names=TRUE)
  se.table <- cbind(dir=dirname(SE.gene.file), se_gene=SE.gene.file)
  se.table <- merge(se.table,all.table,by="dir")
  se.table$sample <- se.table$dir %>% str_replace("/rep","_rep") %>% str_replace("_R[1,2]_00[0-9]","") %>% str_replace("-","_") %>% basename()
  se.table$condition <- se.table$sample %>% str_extract("^[2-3]D")
  se.table <- se.table %>% filter(str_detect(se.table$sample,str_c(CCOC_2D_3D_pooled$sample, collapse ="|"))) %>% filter( sample %notin% c("3D-HAC2-B-Ac_rep1", "3D-JHOC9-B-Ac_rep2"))

se.gr  <- sapply(se.table$se_gene, read.rose2.output,select.meta.col=c("isSuper","OVERLAP_GENES","PROXIMAL_GENES") )
peak.summary.list <- lapply(se.gr,get.genomeCoverage)
peak.summary.df <- data.frame(do.call(rbind,peak.summary.list))
peak.summary.df$widthsd <- lapply(peak.summary.df$width,sd)
#apply element-wise divsion of vector scores and vector widthpeak by row
#peak.summary.df$singal.per.width <-apply(peak.summary.df[c("scores","widthPeak")], 1,function(x){unlist(x[1],use.names = FALSE)/unlist(x[2],use.names = FALSE)} )
peak.summary.df <- cbind(peak.summary.df, t(sapply(peak.summary.df$widthPeak,summary)))
peak.summary.df$target <- rownames(peak.summary.df) %>% str_replace(.,"[2-3]D[-,_]","")
peak.summary.df$condition <- se.table$condition
rownames(peak.summary.df) <- se.table$sample
kable(peak.summary.df %>% dplyr::select(-c(scores,widthPeak,target,condition)))%>% add_header_above(header = c(" " = 3, "Width Summary"= 7)) %>% kable_styling("striped")  %>%scroll_box(width = "100%")

			Width Summary
	numPeak	percentCoverage	widthsd	Min.	1st Qu.	Median	Mean	3rd Qu.	Max.
2D_C5X-A_rep1	521	0.5119433	18565.43	3757	15569.00	26111.0	29783.53	39958.00	108224
2D_C5X-A_rep2	565	0.5696623	20740.11	3556	15157.00	26217.0	30560.54	40323.00	174900
2D_ES2-A_rep1	390	0.3499588	17544.95	3534	14459.75	23555.0	27198.46	35448.75	107312
2D_ES2-A_rep2	410	0.377693	18304.07	3083	14733.75	23400.0	27922.03	37709.00	107591
2D_HAC2-A_rep1	668	0.4848926	16587.81	2752	9222.00	18638.5	22001.95	29631.25	109913
2D_HAC2-A_rep2	751	0.5457887	17843.16	2515	8510.50	17103.0	22028.08	28994.00	120111
2D_HCH1-A_rep1	1064	0.8061596	17349.01	1633	9597.50	19032.5	22965.26	30798.75	152009
2D_HCH1-A_rep2	1082	0.8736538	18354.24	2333	10660.75	20402.5	24473.95	32972.75	153950
2D_JHOC5-A_rep1	456	0.4008345	19314.41	3613	13062.75	22367.0	26643.56	34618.00	138949
2D_JHOC5-A_rep2	435	0.4006083	18905.28	3906	14471.00	24267.0	27914.04	36174.00	119538
2D_JHOC9-A_rep1	752	0.6029846	16508	3217	11862.75	20675.5	24304.15	33036.50	103012
2D_JHOC9-A_rep2	768	0.5927454	16022.95	3180	11389.50	19661.0	23393.70	31899.00	96106
2D_KOC-7c-A_rep1	702	0.4901483	15289.26	3159	9755.00	17601.5	21163.25	28316.75	103395
2D_KOC-7c-A_rep2	779	0.5688513	16059.52	3028	10602.00	18500.0	22133.66	28890.00	106531
2D_OV207-A_rep1	387	0.4684759	22306.2	4332	20240.50	31670.0	36691.74	49049.50	156318
2D_OV207-A_rep2	420	0.5049983	21992.37	4154	20100.50	31410.5	36444.55	48506.25	135536
2D_OVAS-A_rep1	704	0.598128	19269.76	2035	11310.75	21653.0	25752.15	35771.50	146237
2D_OVAS-A_rep2	652	0.5679318	19773.7	1951	11710.75	22206.0	26402.23	36384.00	151425
2D_OVISE-A_rep1	304	0.2321447	17404.65	2679	9467.25	19514.0	23146.07	32350.25	108359
2D_OVISE-A_rep2	325	0.2716723	18694.39	3144	10603.00	21365.0	25336.93	35308.00	110762
2D_OVMANA-A_rep1	896	0.6942538	17307.77	1795	10768.50	19086.5	23485.63	31545.00	126026
2D_OVMANA-A_rep2	820	0.635191	17097.79	1730	11007.25	18995.0	23479.16	30770.50	107370
2D_OVSAYO-A_rep1	683	0.6029002	18840.11	3112	12163.00	22791.0	26755.72	37075.50	138702
2D_OVSAYO-A_rep2	917	0.7466912	19185.13	2661	10394.00	20138.0	24681.05	33714.00	170072
2D_OVTOKO-A_rep1	807	0.7221738	18949.59	3598	13412.50	22970.0	27124.40	36636.50	173712
2D_OVTOKO-A_rep2	523	0.6499654	23446.06	4587	22014.00	32997.0	37668.69	47481.50	175160
2D_RMGII-A_rep1	563	0.6376633	21335.14	3813	18576.00	30242.0	34330.10	44751.00	136243
2D_RMGII-A_rep2	490	0.5758231	21509.06	3663	19582.50	31580.5	35619.27	46039.75	136470
2D_SMOV2-A_rep1	615	0.5633793	17450.2	3814	14485.00	23985.0	27766.29	37245.50	103719
2D_SMOV2-A_rep2	599	0.5498222	18009.13	3910	14603.00	23954.0	27821.94	36817.50	122125
2D_TOV21G-A_rep1	315	0.5014834	34021.29	4062	22744.50	41689.0	48254.52	66369.50	288049
2D_TOV21G-A_rep2	309	0.4876389	33720.33	4940	23917.00	41503.0	47833.47	63885.00	289296
3D_KOC-7C-A_rep1	616	0.5802729	18514.43	4269	14931.50	25444.5	28552.46	37722.25	153761
3D_KOC-7C-A_rep2	723	0.857726	24699.55	4478	17682.00	30106.0	35958.56	47761.00	181481
3D_OV207-A_rep1	277	0.3917063	25154.18	3638	25500.00	38303.0	42862.04	52458.00	185725
3D_OV207-A_rep2	403	0.3844735	18398.1	3657	16648.00	24900.0	28917.01	36505.50	154766
3D_OVISE-A_rep1	575	0.5493934	22011.9	3529	11879.50	23856.0	28960.60	40605.50	185088
3D_OVISE-A_rep2	550	0.4348488	17754.91	3508	10296.25	20138.5	23964.46	32015.50	118553
3D_SMOV2-A_rep1	563	0.6481212	21923.11	4211	18525.00	30399.0	34893.12	45388.50	131706
3D_SMOV2-A_rep2	710	0.7388403	21746.27	3184	15472.75	26197.0	31541.64	41969.75	144659
3D-C5X-B-Ac_rep1	343	0.3424175	16394.4	6428	19250.00	27260.0	30258.95	37272.00	126290
3D-C5X-B-Ac_rep2	380	0.2360343	11944.55	3175	10472.25	16643.5	18827.11	23923.50	78719
3D-HAC2-B-Ac_rep2	735	0.8258416	25638.32	1765	18016.00	29220.0	34056.61	43685.00	225683
3D-HCH1-B-Ac_rep1	570	0.529702	17090.01	3648	17030.00	24722.0	28167.53	34956.75	153872
3D-HCH1-B-Ac_rep2	834	0.7880745	19031.3	3721	14906.25	24137.0	28641.33	37442.00	125041
3D-JHOC9-B-Ac_rep1	358	0.2719044	13240.78	4503	14175.75	20032.5	23021.05	28950.75	92878

select_col <- c("target","widthPeak","condition","Median")
peak.volin.df <- peak.summary.df[select_col] %>% unnest(cols = c(widthPeak))

xlabs <- paste(unique(peak.volin.df$condition),"\n(N=",table(peak.summary.df$condition)%>% sort,")",sep="")

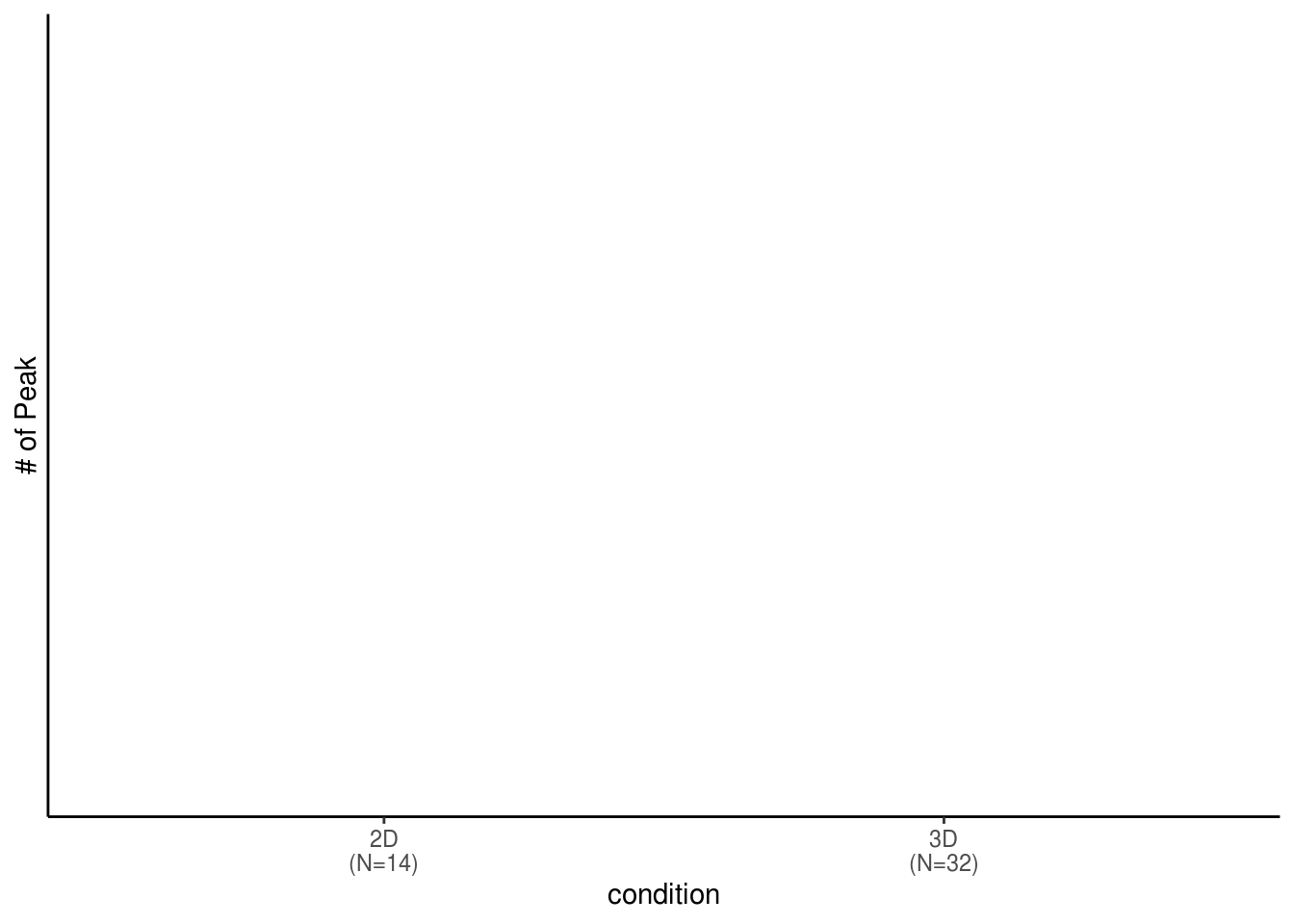

ggplot(peak.summary.df, aes(x=condition, y=numPeak, fill= condition))+ scale_x_discrete(labels=xlabs) +geom_boxplot(width=0.5,position = position_dodge(0.8)) + geom_dotplot(binaxis = "y", stackdir='center', dotsize = 1,position = position_dodge(0.8))+ labs(y="# of Peak") + theme_classic()

## Warning: Computation failed in `stat_boxplot()`:
## 'x' must be atomic

## Bin width defaults to 1/30 of the range of the data. Pick better value with `binwidth`.

## Warning: Computation failed in `stat_bindot()`:
## attempt to apply non-function

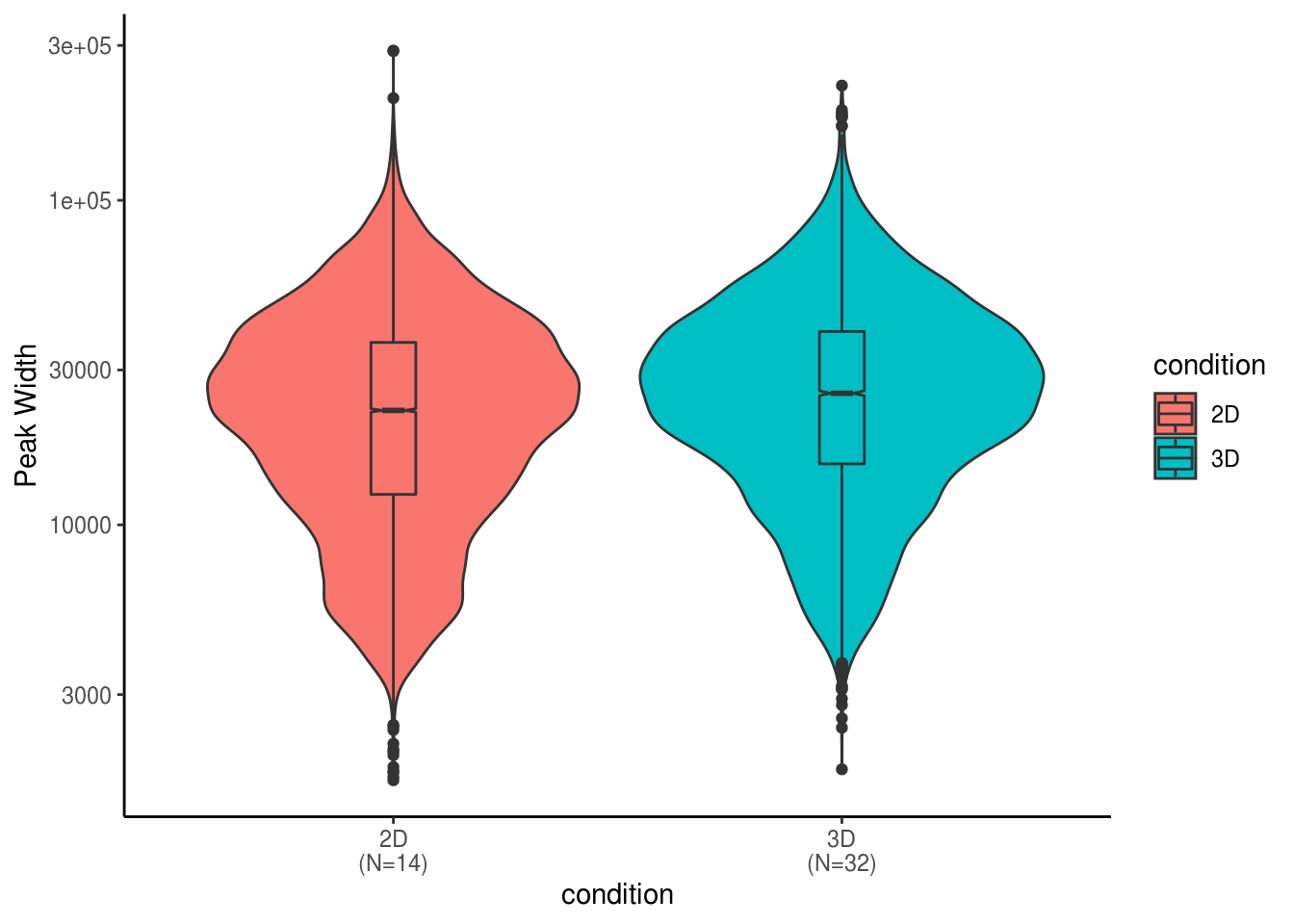

ggplot(peak.volin.df, aes(x=condition, y=widthPeak, fill= condition))+ geom_violin()+geom_boxplot(width=0.1,notch=TRUE)+ scale_x_discrete(labels=xlabs)+labs(y="Peak Width") + scale_y_log10(labels=as.character)+ theme_classic()

4.2.3 Super Ehancer rank plot for each samples

Not running it because R can’t render that many plots in one grid

#se.rank.plots <- mapply(get.plot.obj,se.table$se_gene,se.table$all,se.table$sample,SIMPLIFY = FALSE)

#plot_grid( plotlist = se.rank.plots)

CCOC.2D.3D.chip.diffbind <- read.csv("data/ChIP-seq/CCOC_2D_3D_chip_diffbind.csv")
CCOC.2D.3D.chip.diffbind$Peaks<- CCOC.2D.3D.chip.diffbind$MACPeak
CCOC.2D.3D.chip.diffbind$PeakCaller <- "narrow"

CCOC.2D.3D.diff <- dba(sampleSheet=CCOC.2D.3D.chip.diffbind,bSummarizedExperiment = FALSE)

## 3D-HAC2_1 HAC2  3D  1 narrow

## 3D-JHOC9_1 JHOC9  3D  1 narrow

## 3D_KOC-7C_1 KOC-7C  3D  1 narrow

## 3D_KOC-7C_2 KOC-7C  3D  2 narrow

## 3D_OV207_1 OV207  3D  1 narrow

## 3D_OV207_2 OV207  3D  2 narrow

## 3D_OVISE_1 OVISE  3D  1 narrow

## 3D_OVISE_2 OVISE  3D  2 narrow

## 3D_SMOV2_1 SMOV2  3D  1 narrow

## 3D_SMOV2_2 SMOV2  3D  2 narrow

## 3D-C5X_1 C5X  3D  1 narrow

## 3D-C5X_2 C5X  3D  2 narrow

## 3D-HCH1_1 HCH1  3D  1 narrow

## 3D-HCH1_2 HCH1  3D  2 narrow

## 2D_C5X_1 C5X  2D  1 narrow

## 2D_C5X_2 C5X  2D  2 narrow

## 2D_ES2_1 ES2  2D  1 narrow

## 2D_ES2_2 ES2  2D  2 narrow

## 2D_HAC2_1 HAC2  2D  1 narrow

## 2D_HAC2_2 HAC2  2D  2 narrow

## 2D_HCH1_1 HCH1  2D  1 narrow

## 2D_HCH1_2 HCH1  2D  2 narrow

## 2D_JHOC5_1 JHOC5  2D  1 narrow

## 2D_JHOC5_2 JHOC5  2D  2 narrow

## 2D_JHOC9_1 JHOC9  2D  1 narrow

## 2D_JHOC9_2 JHOC9  2D  2 narrow

## 2D_KOC-7C_1 KOC-7C  2D  1 narrow

## 2D_KOC-7C_2 KOC-7C  2D  2 narrow

## 2D_OV207_1 OV207  2D  1 narrow

## 2D_OV207_2 OV207  2D  2 narrow

## 2D_OVAS_1 OVAS  2D  1 narrow

## 2D_OVAS_2 OVAS  2D  2 narrow

## 2D_OVISE_1 OVISE  2D  1 narrow

## 2D_OVISE_2 OVISE  2D  2 narrow

## 2D_OVMANA_1 OVMANA  2D  1 narrow

## 2D_OVMANA_2 OVMANA  2D  2 narrow

## 2D_OVSAYO_1 OVSAYO  2D  1 narrow

## 2D_OVSAYO_2 OVSAYO  2D  2 narrow

## 2D_OVTOKO_1 OVTOKO  2D  1 narrow

## 2D_OVTOKO_2 OVTOKO  2D  2 narrow

## 2D_RMGII_1 RMGII  2D  1 narrow

## 2D_RMGII_2 RMGII  2D  2 narrow

## 2D_SMOV2_1 SMOV2  2D  1 narrow

## 2D_SMOV2_2 SMOV2  2D  2 narrow

## 2D_TOV21G_1 TOV21G  2D  1 narrow

## 2D_TOV21G_2 TOV21G  2D  2 narrow

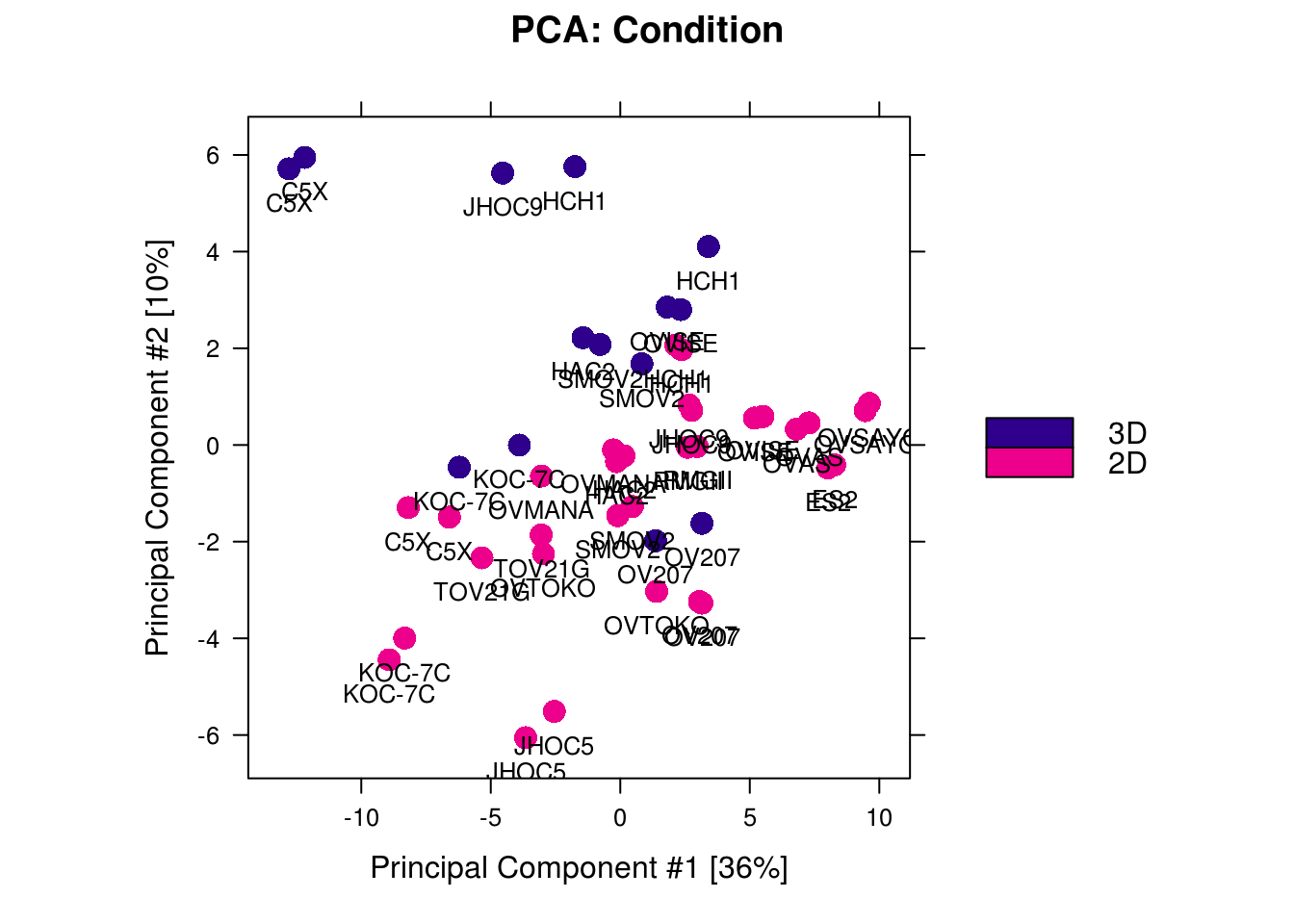

dba.plotPCA(CCOC.2D.3D.diff,DBA_CONDITION,label=DBA_TISSUE)

promoter.gr <- get.promoter.gr()

##   1613 genes were dropped because they have exons located on both strands of the same reference sequence or on more than one reference sequence, so cannot be represented by
##   a single genomic range.
##   Use 'single.strand.genes.only=FALSE' to get all the genes in a GRangesList object, or use suppressMessages() to suppress this message.

CCOC.promoter <- dba.peakset(CCOC.2D.3D.diff,bRetrieve=TRUE,
                             peaks=promoter.gr)
#CCOC.promoter.counts <- dba.count(CCOC.2D.3D.diff,peaks=CCOC.promoter)
